8.65KW Power Automatic Edge Banding Machine Designed for Building Material Industries
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Type | Edge Banding Machine |
|---|---|---|---|
| Voltage | 380v 220v, 380v 50HZ 3 Ph | Dimension(L*W*H) | 4100x800x1620mm |
| Power (kW) | 8.65KW | Weight (KG) | 1300 Kg |
| Applicable Industries | Building Material Shops, Manufacturing Plant, Construction Works | Warranty | 1 Year |
| Function | Gluing | Key Selling Points | Long Service Life |
| Panel Feed Speed(m/min) | 23m/min | Video Outgoing-inspection | Provided |
| Warranty Of Core Components | 1 Year | Core Components | Motor |
| Use | Plywood Production | Panel Thickness | 10-60mm |
| Panel Width | ≥60mm | Panel Length | ≥150mm |
| Workign Pressure | 0.6Mpa | Edge Thickness | 0.3-3mm |
| HS Code | 8465100000 | Gluing Pot Heating Power | 2.4KW |
Product Description
Product Description

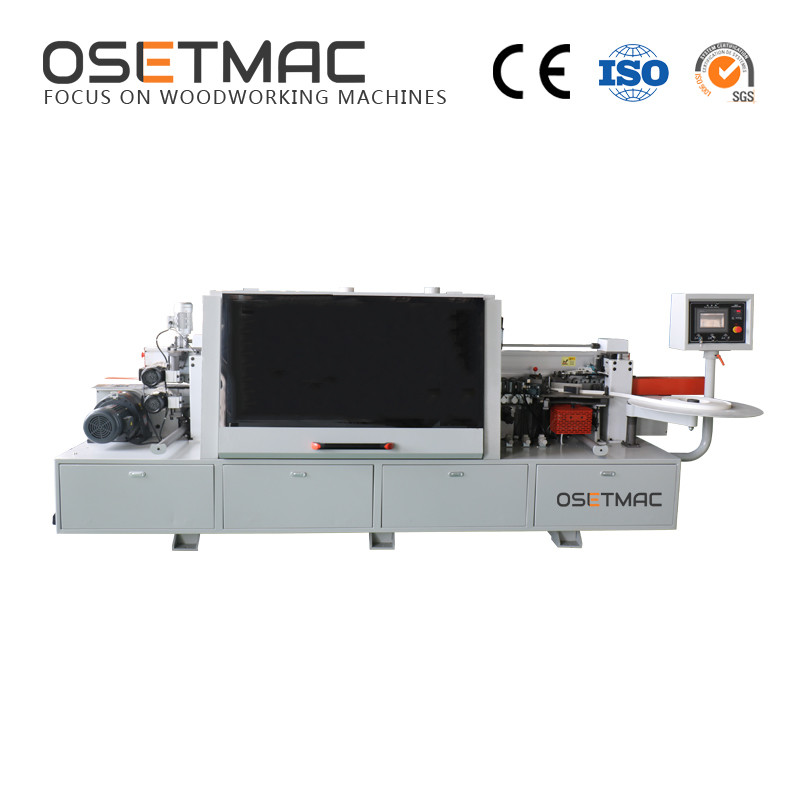

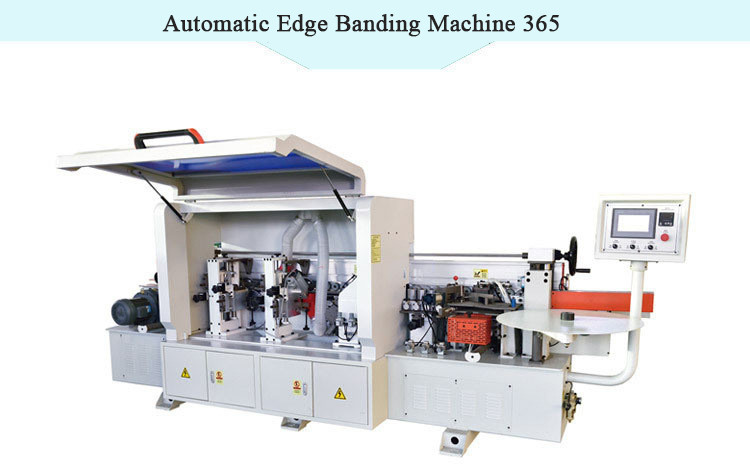

Automatic Edge Banding Machine SYS-365
Main Technical Parameter
Parameters | ||||
Model | SYS-365 | |||
Panel Thickness | 10-60mm | |||
Edge Band Thickness | 0.3-3mm | |||
Panel Width | ≥60mm | |||
Panel Length | ≥150mm | |||
Feeding Speed | 15-23m/min | |||
Working Pressure | 0.6Mpa | |||
Voltage | 380V/50HZ/3PH | |||
Gluing Motor | 0.75KW 50HZ 1400RPM | |||
End Cutting Motor | 0.37KW * 2 200HZ 12000RPM | |||
Trimming Motor | 0.75KW * 2 200HZ 12000RPM | |||
Buffing Motor | 0.37KW * 2 50HZ 1400RPM | |||
Conveyor Motor | 2.2KW | |||
Glue Pot Heating Power | 2.4KW | |||
Lighting Power | 0.05KW | |||
Lifting Motor | 0.25KW | |||
Total Power | 8.65KW | |||
Dimension | 4100x800x1620mm | |||
Wooden Crate Package | 4200×900×1720mm | |||
Packing&Shipping
After Sales Service
Our Service
The whole machine is guaranteed for one year, providing installation and use video, lifelong technical support and parts service
