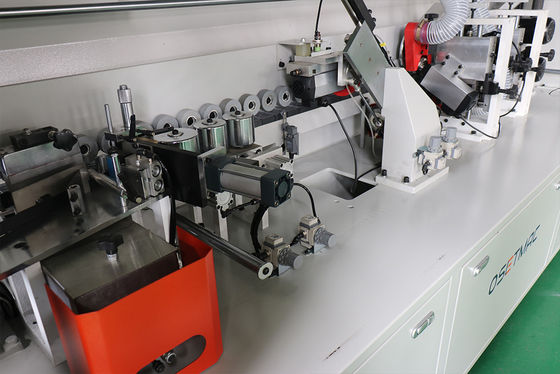

3155x730x1350mm Automatic Edge Band Machine SYS-320 with 1.5KW Gluing Pot Heating Power
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Type | Edge Banding Machine |
|---|---|---|---|
| Voltage | 220V 380V 415V | Dimension(L*W*H) | 3155x730x1350mm |
| Power (kW) | 6.3KW | Weight (KG) | 820 Kg |
| Applicable Industries | Building Material Shops, Manufacturing Plant, Construction Works | Warranty | 1 Year |
| Function | Gluing, Fine Trimming, End Trimming, Scraping, Buffing | Key Selling Points | Long Service Life |
| Panel Feed Speed(m/min) | 15m/min | Video Outgoing-inspection | Provided |
| Warranty Of Core Components | 1 Year | Core Components | Motor |
| Use | HDF Production | Panel Thickness | 10-60mm |
| Panel Width | ≥60mm | Panel Length | ≥150mm |
| Workign Pressure | 0.6Mpa | Edge Thickness | 0.3-3mm |
| Gluing Motor | 0.37KW/50HZ/1400RPM | End Cutting Motor | 0.37KW * 2/200HZ/12000RPM |
| Fine Trimming Motor | 0.37KW * 2/50HZ/1400RPM | Conveyor Motor | 1.5KW |
| Gluing Pot Heating Power | 1.5KW |
Product Description
Product Description

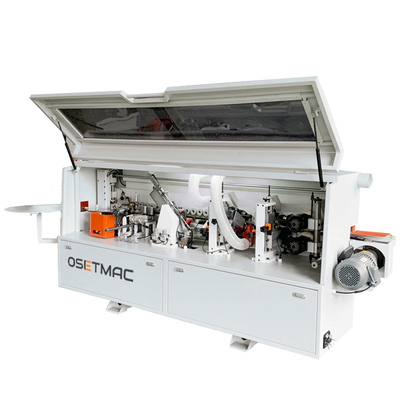

Automatic Edge Banding Machine SYS-320
Main Technical Parameter
Model | SYS-320 | ||
Panel Thickness | 10-60mm | ||
Edge Band Thickness | 0.3-3mm | ||
Panel Width | ≥60mm | ||
Panel Length | ≥150mm | ||
Feeding Speed | 15m/min | ||
Working Pressure | 0.6Mpa | ||
Voltage | 380V/50HZ/3PH | ||
Gluing Motor | 0.37KW/50HZ/1400RPM | ||
End Cutting Motor | 0.37KW * 2/200HZ/12000RPM | ||
Fine Trimming Motor | 0.37KW * 2/200HZ/12000RPM | ||
Buffing Motor | 0.37KW * 2/50HZ/1400RPM | ||
Conveyor Motor | 1.5KW | ||
Glue Pot Heating Power | 1.5KW | ||
Assistant Heating Power | 0.3KW | ||
Lighting Power | 0.05KW | ||
Total Power | 6.3KW | ||
Dimension | 3155x730x1350mm | ||
Wooden Case Package | 3250x870x1450mm | ||
Weight | 820KG | ||
Packing&Shipping
After Sales Service
Our Service
The whole machine is guaranteed for one year, providing installation and use video, lifelong technical support and parts service
Company Introduction
OSETMAC focuses on woodworking machines for over 8 years. OSETMAC has two wholly-owned manufacturing factories--Qingdao Three One
Three Machinery Company and Qingdao De Tai Wo Machinery Company. Our factories have been well-recognized as a professional
woodworking machine producers. The main products of OSETMAC is sliding table saw, brush sanding machine, edge banding machine,
wood drilling machine and CNC routers. What’s more, our products have been sold to more than 30 countries and regions in Middle
East, Southeast Asia, Europe and South America.OSETMAC is able to do our own R&D, deliver production task on time and provide
customer service quickly. The manufacturing factories have already been granted ISO9001, and some of the main products have passed
CE certificate.
The goal of OSETMAC is to provide high-quality products to our customers, assist your business and become one of the leading
companies in woodwoking machines field.
Three Machinery Company and Qingdao De Tai Wo Machinery Company. Our factories have been well-recognized as a professional
woodworking machine producers. The main products of OSETMAC is sliding table saw, brush sanding machine, edge banding machine,
wood drilling machine and CNC routers. What’s more, our products have been sold to more than 30 countries and regions in Middle
East, Southeast Asia, Europe and South America.OSETMAC is able to do our own R&D, deliver production task on time and provide
customer service quickly. The manufacturing factories have already been granted ISO9001, and some of the main products have passed
CE certificate.
The goal of OSETMAC is to provide high-quality products to our customers, assist your business and become one of the leading
companies in woodwoking machines field.
Our Services & Strength
Our two factories been well-recognized as a professional woodworking machine producer, with such star products as sliding table
saw, brush sanding machine, edge banding machine, etc. What’s more, the products have been sold out to more than 20 countries and
regions in Middle East, Southeast Asia, Europe and South America.
saw, brush sanding machine, edge banding machine, etc. What’s more, the products have been sold out to more than 20 countries and
regions in Middle East, Southeast Asia, Europe and South America.
