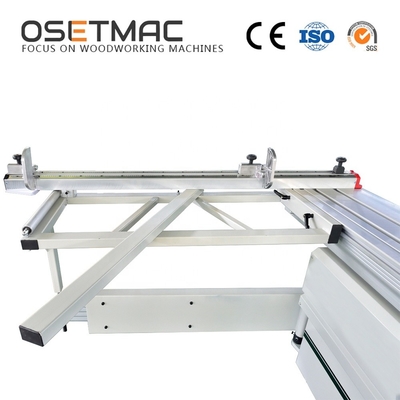

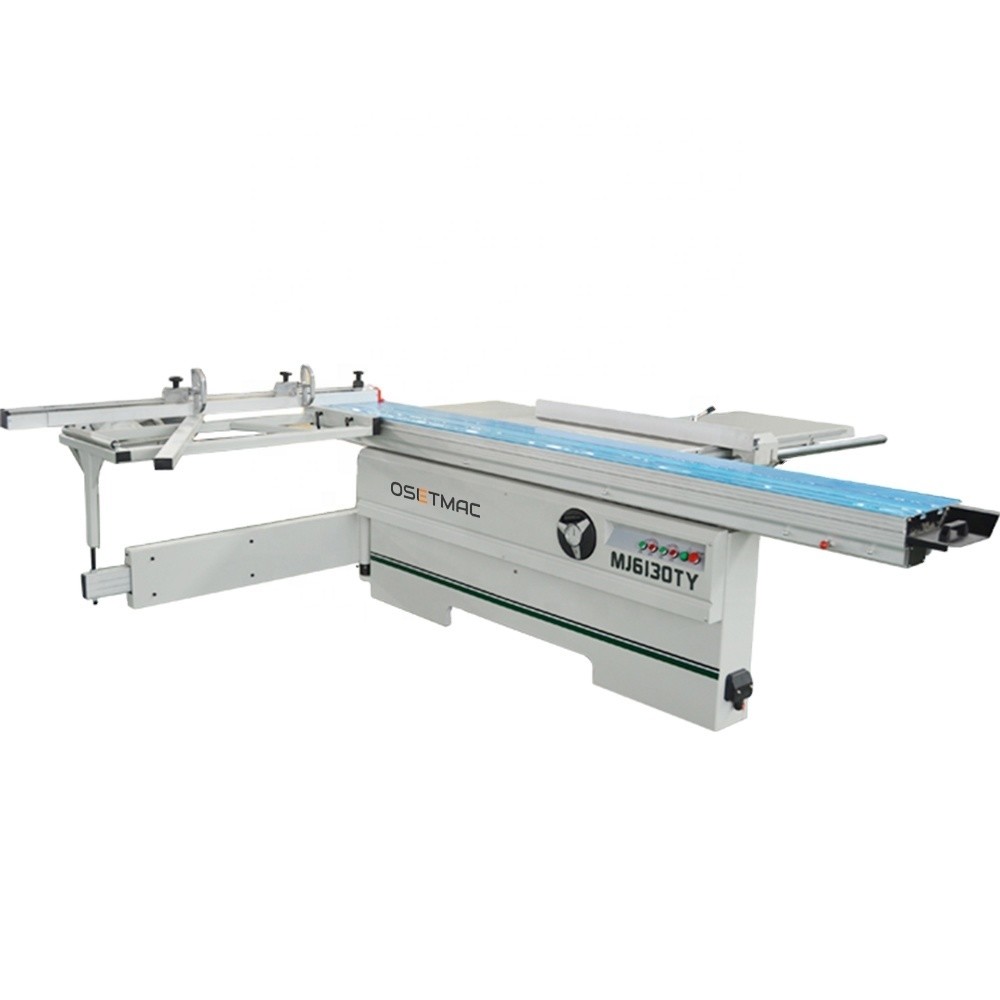

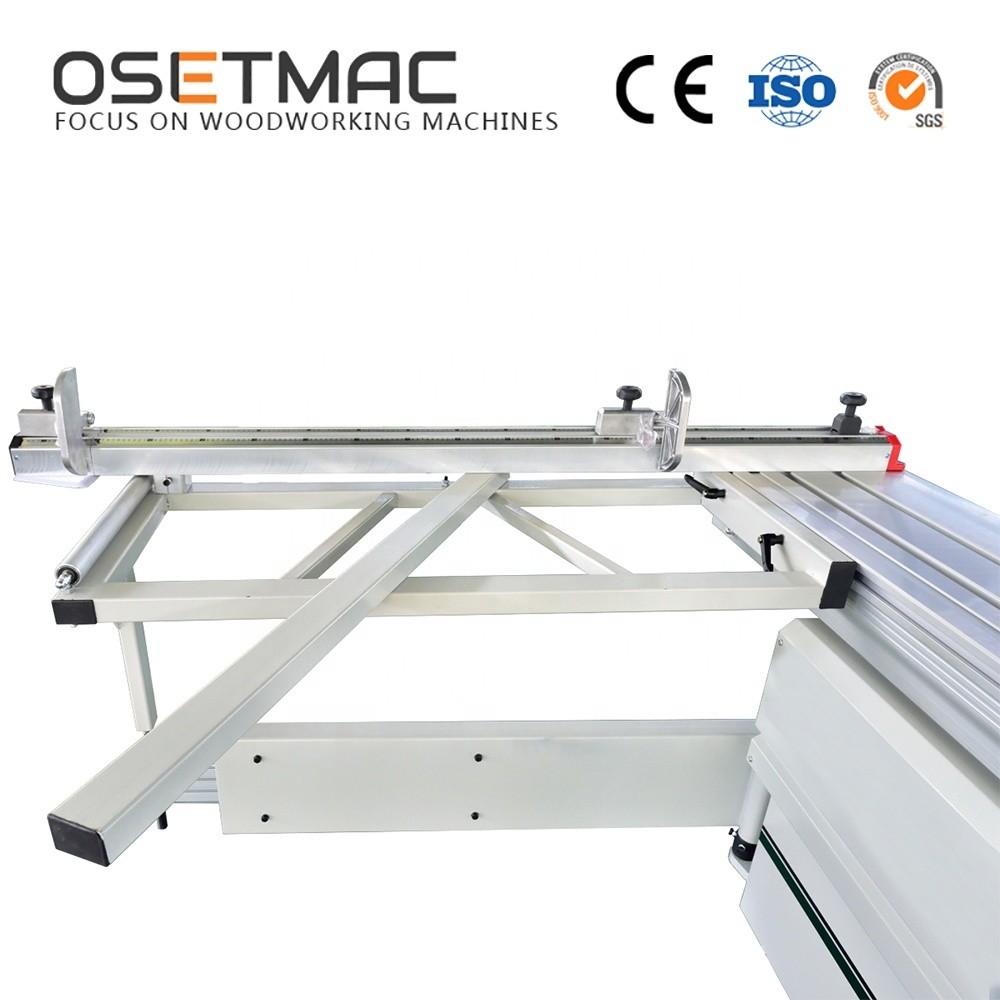

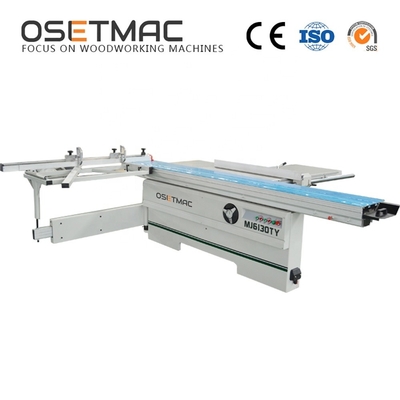

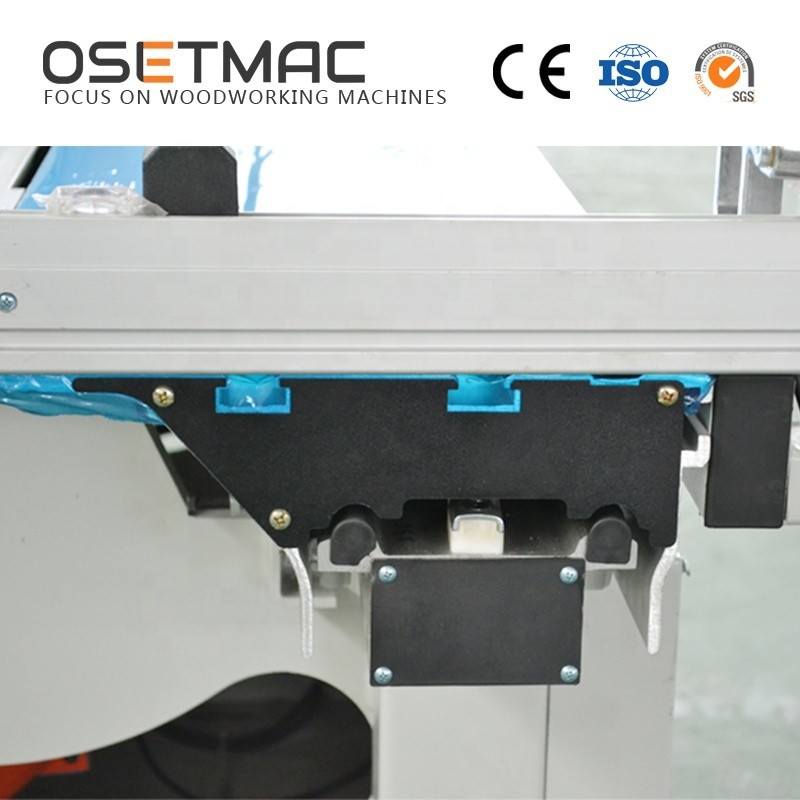

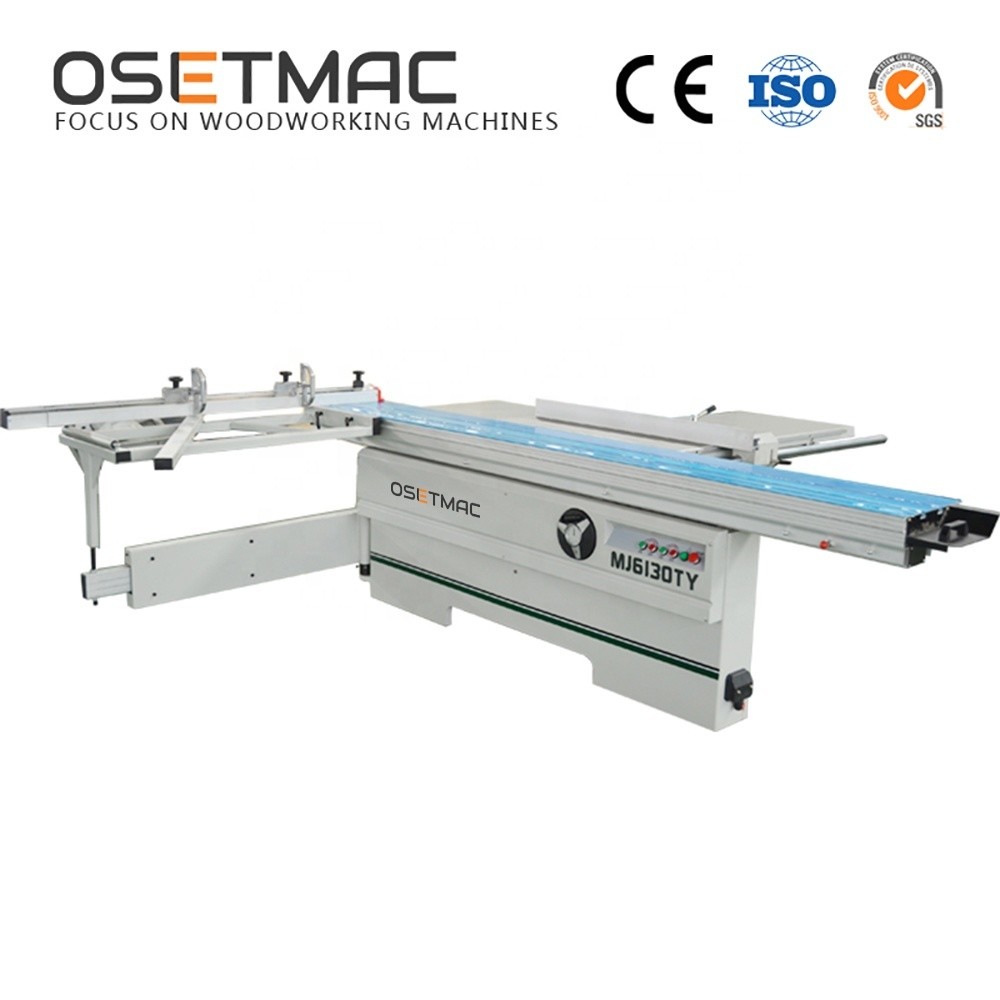

OSETMAC MJ6130TY Manual Lifting Sliding Table Panel Saw for Wood Cutting
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Type | Circular Saw |
|---|---|---|---|
| Use | Wood Cutting, Board Cutting | Style | Horizontal |
| Voltage | 380v Three Phase Or As Your Request | Dimension(L*W*H) | 3050*3150*900mm |
| Warranty | 1 Year | Application | Furniture Making, Furniture Factory, Furniture Shop, Cabinet Shop, Cabinet Factory |
| Weight (KG) | 650 KG | Power (kW) | 5.5+1.1 |
| Key Selling Points | High-accuracy | Applicable Industries | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Construction Works , Other, Furniture Factory, Cabinet Company, Furniture Shop, Furniture Maker |
| Marketing Type | Hot Product 2021 | Machinery Test Report | Not Available |
| Video Outgoing-inspection | Provided | Warranty Of Core Components | 1 Year |
| Core Components | Motor | Model | MJ6130TY |
| Sliding Table Dimension | 3000*375mm | Cast Iron Table Dimension | 910*620*80mm |
| Length Extension Table | 905*680*70mm | Width Cutting Extension Table | 640*680*70mm |
| Main Saw Diameter | 300mm | Main Saw Blade Diameter Maximum | 350mm |
| Main Saw Bore Diameter | 30mm | Max. Cutting Height With Bade At 90 | 80/100mm(dia300/350) |
| Max. Cutting Height With Bade At 45 | 50/70mm(dia300/350) |
Product Description
Product Description
Specification
Model | MJ6130TY |
Condition | New |
Type | Circular Saw |
Use | wood cutting |
Style | Horizontal |
Place of Origin | China |
Brand Name | OSETMAC |
Usage | Board cutting |
Voltage | 380v three phase |
Dimension(L*W*H) | 3050*3150*900mm |
Certification | CE, ISO, SGS |
Warranty | 1 Year |
Application | Furniture making, furniture factory, furniture shop, cabinet shop, cabinet factory |
Weight (KG) | 650KG |
Power (kW) | 5.5+1.1 |
After Warranty Service | Video technical support, Online support, Spare parts |
Local Service Location | Turkey, Viet Nam, Peru, Mexico, Russia, Chile, UAE, Bulgaria |
Showroom Location | Peru, Bulgaria |
Key Selling Points | High-accuracy |
Applicable Industries | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Construction works , Other, Furniture factory, Cabinet Company, Furniture shop, Furniture maker |
Marketing Type | Hot Product 2021 |
Machinery Test Report | Not Available |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Motor |
Model | MJ6130TY |
Sliding Table Dimension | 3000*390mm |
Cast Iron Table Dimension | 910*620*80mm |
Length Extension Table | 905*680*70mm |
Width Cutting Extension Table | 640*680*70mm |
Main Saw Diameter | 300mm |
Main Saw Blade Diameter Maximum | 350mm |
Main Saw Bore Diameter | 30mm |
Max. Cutting Height With Bade at 90 | 80/100mm(dia300/350) |
Max. Cutting Height With Bade at 45 | 50/70mm(dia300/350) |
Main Motor Power | 5.5KW |
Main Blade Speed | 4000/6000RPM |
Scorning Saw Blade Diameter | 120mm |
Scorning Saw Bore Diameter | 20mm |
Scorning Saw Motor Power | 1.1KW |
Scorning Blade Speed | 8000RPM |
Max. Cutting Width | 1250mm |
Max. Cutting Length | 3100mm |
Blade Tilting Adjustment | 0-45°, electric |
Main Saw Height Adjustment | Electric |
Scorning Saw Height Adjustment | Electric |
Dust Guard Outlet Diameter | 80mm |
Dust System Outlet Diameter | 100mm |
Dimension of Wood Packing Carton | 2250*1200*1100mm(Main Crate ) |
3400*450*290mm(Sliding Table) | |
Dimension | 3250*3450*900mm |
G. W. | 680KG |
Packing & Delivery
WOODEN CASE PACKING AND STRETCH FILM
Company Profile
OSETMAC focuses on woodworking machines for over 8 years. OSETMAC has two wholly-owned manufacturing factories--Qingdao Three One Three Machinery Company and Qingdao De Tai Wo Machinery Company. Our factories have been well-recognized as a professional woodworking machine producers. The main products of OSETMAC is sliding table saw, brush sanding machine, edge banding machine, wood drilling machine and CNC routers. What's more, our products have been sold to more than 30 countries and regions in Middle East, Southeast Asia, Europe and South America. OSETMAC is able to do our own R&D, deliver production task on time and provide customer service quickly. The manufacturing factories have already been granted ISO9001, and some of the main products have passed CE certificate.
