This machine uses linear guideway to lift the saw blade which is more smooth and more durable. Aluminum shell motor makes sure its
good heat dissipation. 25mm metal plate guarantees the compressive strength and the high precision of the inter-machine, which can
also reduce the shock of the machine.
All Products
-
JoroI have got the machines and the sliding table saw are really good quality.
Contact Person :
Kevin Han
Phone Number :
+86 18661895387
WhatsApp :
+8618661895387
Electric Lifting Sliding Table Saw MJ6132BD for Woodworking Panel Cutting from OSETMAC
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Type | Panel Saw |
|---|---|---|---|
| Use | Woodworking, Cutting Wood | Style | Horizontal |
| Voltage | 380v | Dimension(L*W*H) | 3250*3450*900mm |
| Warranty | 1 YEAR | Application | Furniture Making |
| Weight (KG) | 700 KG | Power (kW) | 6.6KW |
| Key Selling Points | Long Service Life | Max.Cutting Height At 90°(mm) | 100mm |
| Max.Cutting Height At 45°(mm) | 70mm | Max. Length Of Workpiece (mm) | 3100mm |
| Applicable Industries | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising Company | Marketing Type | Ordinary Product |
| Machinery Test Report | Provided | Video Outgoing-inspection | Provided |
| Warranty Of Core Components | 1 Year | Core Components | Motor |
| After Warranty Service | Video Technical Support | Port | Qingdao Port |
Product Description
Product Description

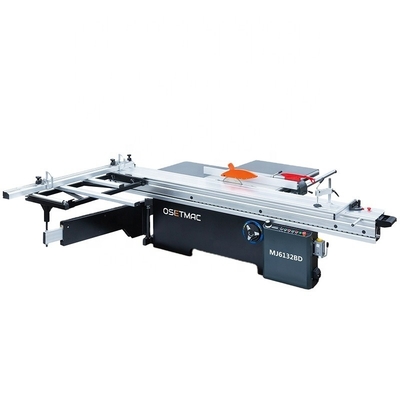

OSETMAC High Precision Sliding Table Saw MJ6132BD Circular Saw Panel Saw for Woodworking
Inner Structure
Main Saw Spindle
After the heating processing and dynamic balancing treatment, our saw spindle will never deformation. With high quality belt and
motor, our machine has lower noise, higher precision and higher efficiency of power transmission.
motor, our machine has lower noise, higher precision and higher efficiency of power transmission.
Size Information
MJ6132BD SPECIFICATION
Sliding Table Dimension | 3200*380mm | |||||
Cast Iron Table Dimension | 910*620*80mm | |||||
length extension table | 905*680*70mm | |||||
width cutting extension table | 640*680*70mm | |||||
Main Saw Diameter | 300mm | |||||
Main Saw Blade Diameter Maximum | 350mm | |||||
Main Saw Bore Diameter | 30mm | |||||
Max. Cutting Height With Bade at 90 | 80/100mm（φ300/350） | |||||
Max. Cutting Height With Bade at 45 | 50/70mm（φ300/350） | |||||
Main Motor Power | 5.5KW | |||||
Main Blade Speed | 4000/6000RPM | |||||
Scorning Saw Blade Diameter | 120mm | |||||
Scorning Saw Bore Diameter | 20mm | |||||
Scorning Saw Motor Power | 1.1KW | |||||
Scorning Blade Speed | 8000RPM | |||||
Max. Cutting Width | 1250mm | |||||
Max. Cutting Length | 3100mm | |||||
Blade Tilting Adjustment | 0-45° | |||||
Main Saw Height Adjustment | Electric | |||||
Scorning Saw Height Adjustment | Manual | |||||
Dust Guard Outlet Diameter | 80mm | |||||
Dust System Outlet Diameter | 100mm | |||||
Dimension of Wood Packing Carton | 2250*1200*1100mm(Main Crate ) | |||||
3400*450*290mm(Sliding Table) | ||||||
Dimension | 3250*3450*900mm | |||||
G. W. | 800KG | |||||

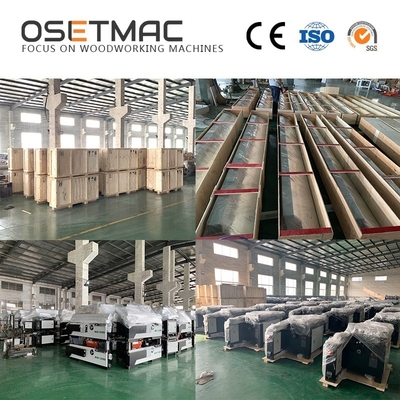

Packing&Shipping
After Sales Service
good aftermarket
* The whole machine is guaranteed for one year, providing online after-sales service and spare parts service for life
* Provides use video and install video
Company Introduction
OSETMAC focuses on woodworking machines for over 8 years. OSETMAC has two wholly-owned manufacturing factories--Qingdao Three One Three Machinery Company and Qingdao De Tai Wo Machinery Company. Our factories have been well-recognized as a professional woodworking machine producers. The main products of OSETMAC is sliding table saw, brush sanding machine, edge banding machine, wood drilling machine and CNC routers. What’s more, our products have been sold to more than 30 countries and regions in Middle East, Southeast Asia, Europe and South America.OSETMAC is able to do our own R&D, deliver production task on time and provide customer service quickly. The manufacturing factories have already been granted ISO9001, and some of the main products have passed CE certificate.
The goal of OSETMAC is to provide high-quality products to our customers, assist your business and become one of the leading companies in woodwoking machines field.
The goal of OSETMAC is to provide high-quality products to our customers, assist your business and become one of the leading companies in woodwoking machines field.
Our Services & Strength
Our two factories been well-recognized as a professional woodworking machine producer, with such star products as sliding table
saw, brush sanding machine, edge banding machine, etc. What’s more, the products have been sold out to more than 20 countries and
regions in Middle East, Southeast Asia, Europe and South America.
saw, brush sanding machine, edge banding machine, etc. What’s more, the products have been sold out to more than 20 countries and
regions in Middle East, Southeast Asia, Europe and South America.
