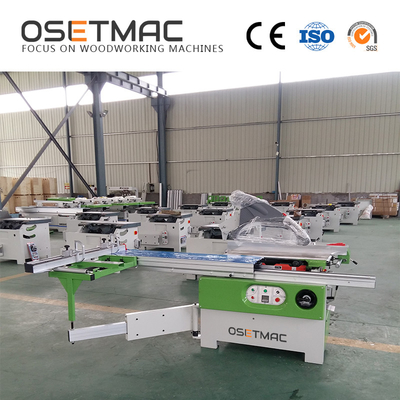

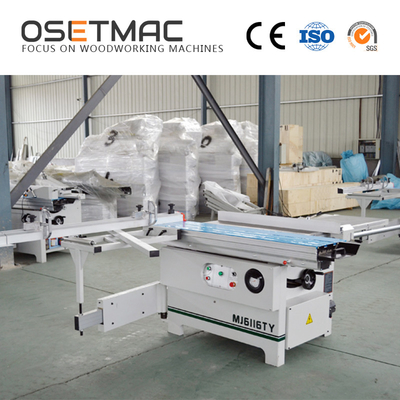

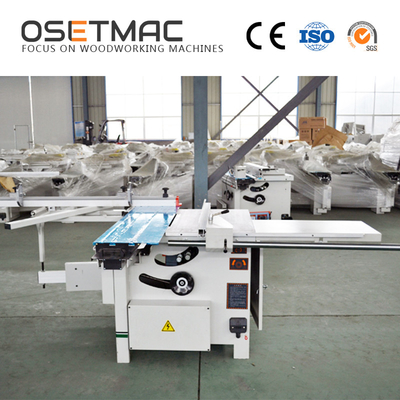

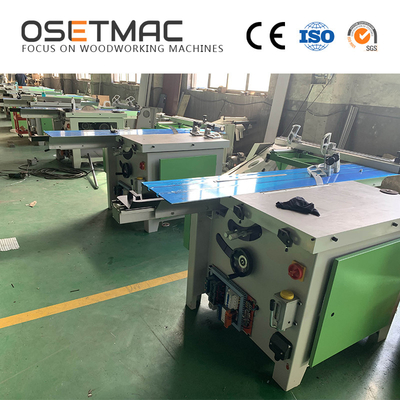

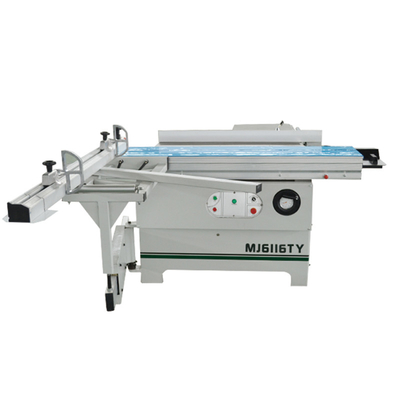

20mm Scoring Saw Bore Diameter Wood Sliding Table Panel Saw for Furniture Production
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Type | Panel Saw |
|---|---|---|---|
| Use | Woodworking, Wood Cutting | Style | VERTICAL |
| Voltage | Customized | Dimension(L*W*H) | 1650*3150*900mm |
| Warranty | 1 Year | Application | Furniture Factory, Wood Board Factory |
| Weight (KG) | 250 KG | Power (kW) | 5.5KW |
| Key Selling Points | Easy To Operate | Max.Cutting Height At 90°(mm) | 80mm |
| Max.Cutting Height At 45°(mm) | 50mm | Max. Length Of Workpiece (mm) | 1500mm |
| Applicable Industries | Machinery Repair Shops, Manufacturing Plant, Woodworking | Marketing Type | New Product 2023 |
| Machinery Test Report | Provided | Video Outgoing-inspection | Provided |
| Warranty Of Core Components | 1 Year | Core Components | Motor |
| Support Table Dimension | 1600*375mm | Extension Table | 760*630*50mm |
| Width Cutting Extension Table | 575*550*50mm | Main Blade Diameter | 300mm |
| Main Saw Blade Diameter Maximum | 315mm | Main Saw Bore Diameter | 30mm |
| Main Saw Blade Speed | 4000RPM | Scoring Saw Blade Diameter | 120mm |
| Scorning Saw Bore Diameter | 20mm | Blade Tilting Adjustment | 0-45° |
Product Description
Plywood Circular Saw Machine Wood Sliding Table Panel Saw Sliding Table Saw Machinery Price
Product Description

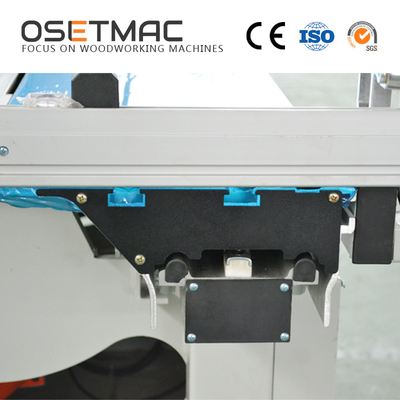

* Fully-extruded, anodized aluminum sliding table.
* The guideway of movable table is steel bar structure with quenching and chromizing.
* Cast-iron Main Table and Broaden Extension Table.
* With main saw blade and scoring saw blade.
* All bearings in our machine is SKF bearings.
* Covered by a 1-year parts warranty.
* With orange dust hood and riving knife
| Parameters | |||
| Sliding Table Dimension | 1600*375mm | ||
| Cast Iron Table Dimension | 980*560*70mm | ||
| length extension table | 760*630*50mm | ||
| width cutting extension table | 575*550*50mm | ||
| Main Saw Diameter | 300mm | ||
| Main Saw Blade Diameter Maximum | 315mm | ||
| Main Saw Bore Diameter | 30mm | ||
| Max. Cutting Height With Bade at 90 | 80mm(φ300) | ||
| Max. Cutting Height With Bade at 45 | 50mm(φ300) | ||
| Main Motor Power | 4.0/5.5KW | ||
| Main Blade Speed | 4000/6000RPM | ||
| Scorning Saw Blade Diameter | 120mm | ||
| Scorning Saw Bore Diameter | 20mm | ||
| Scorning Saw Motor Power | 0.75/1.1KW | ||
| Scorning Blade Speed | 8000RPM | ||
| Max. Cutting Width | 1250mm | ||
| Max. Cutting Length | 1500mm | ||
| Blade Tilting Adjustment | 0-45° | ||
| Main Saw Height Adjustment | Manual | ||
| Scorning Saw Height Adjustment | Manual | ||
| Dust Guard Outlet Diameter | 80mm | ||
| Dust System Outlet Diameter | 100mm | ||
| Dimension of Wood Packing Carton | 1200*1100*1100mm(Main Crate) | ||
| 1650*420*270mm (Sliding Table ) | |||
| Dimension | 1650*3150*900mm | ||
| G. W. | 500KG | ||
Packaging & Shipping
Company Information
OSETMAC focuses on woodworking machines for over 8 years. OSETMAC has wholly-owned manufacturing factories--Qingdao Three One Three Machinery Company. Our factories have been well-recognized as a professional woodworking machine producers. The main products of OSETMAC is sliding table saw, brush sanding machine, edge banding machine, wood drilling machine and CNC routers. What's more, our products have been sold to more than 30 countries and regions in Middle East, Southeast Asia, Europe and South America. OSETMAC is able to do our own R&D, deliver production task on time and provide customer service quickly. The manufacturing factories have already been granted ISO9001, and some of the main products have passed CE certificate.
FAQ
1. Who Are We?
We are based in Shandong, China, start from 2018,sell to Southeast Asia(15.00%),Northern Europe(15.00%),North America(10.00%),Eastern Europe(10.00%),Western Europe(10.00%),Southern Europe(10.00%),South America(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Central America(5.00%),South Asia(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.
2. How Can We Guarantee Quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. What Can You Buy From Us?
SLIDING TABLE SAW,EDGE BANDING MACHINE,SANDING MACHINE,CNC ROUTER,WOODWORKING MACHINES
4. Why Should You Buy From Us Not From Other Suppliers?
Professional technical team and perfect careful after-sale service
5. What Services Can We Provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
