Plywood Edge Banding Machine with 0.3-3mm Band Thickness and Automatic Board Trimming
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Type | Edge Banding Machine |
|---|---|---|---|
| Voltage | 380V, 380V/50HZ/3PH | Dimension(L*W*H) | 4100x800x1620mm |
| Power (kW) | 8.65KW | Weight (KG) | 1490 Kg |
| Applicable Industries | Building Material Shops, Manufacturing Plant, Construction Works , Advertising Company | Warranty | 1 Year |
| Function | Gluing, Fine Trimming, End Trimming, Scraping, Buffing | Key Selling Points | Automatic |
| Panel Feed Speed(m/min) | 23m/min | Video Outgoing-inspection | Provided |
| Warranty Of Core Components | 1 Year | Core Components | Bearing, Motor, PLC, Engine |
| Use | MDF Production | Panel Thickness | 10-60mm |
| Edge Band Thickness | 0.3-3mm | Panel Width | ≥60mm |
Product Description
Product Description

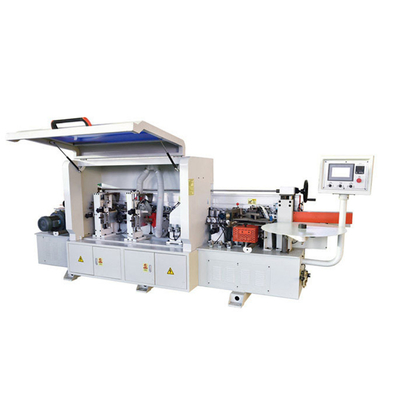

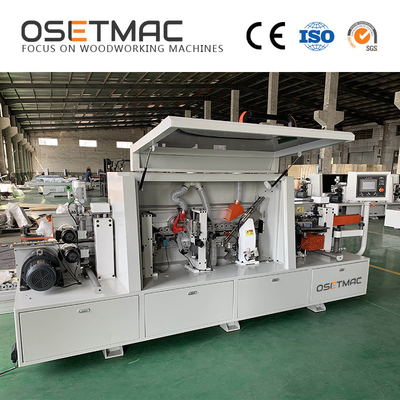

Automatic Board Edge Banding Machine Edge Banding Trimmer Machine For Plywood Wood
Description： * 5 Functions: Gluing--End Cutting--Fine Trimming--Scraping--Buffing * Working Voltage: 380V/50HZ /3PH * DELTA inverter or MCGS inverter for your choice. * PLC Touch Screen * CC highspeed motor. * The conveyor speed can be adjusted from 13-25m/min *Honeywell travel switch, contactor, air switch. *Air Tac solenoid valve, air cylinder,oil-water seperator. * With automatic oil feeder. *14mm high strenth steel sheet for the whole machine. * In the machine is mounted lights. * Support customization for the machine appearance.
Machine | Function | ||||||||||||||
Pre-Milling | Gluing | End Cut | Rough Trim | Fine Trim | Corner Round | Scraping | Buffing | ||||||||
SYS-300 | ★ | ★ | ★ | ★ | |||||||||||
SYS-320 | ★ | ★ | ★ | ★ | ★ | ||||||||||
SYS-320A | ★ | ★ | ★ | ★ | ★ | ||||||||||
SYS-320B | ★ | ★ | ★ | ★ | ★ | ||||||||||
SYS-360 | ★ | ★ | ★ | ★ | ★ | ★ | |||||||||
SYS-365J | ★ | ★ | ★ | ★ | ★ | ★ | ★ | ||||||||
SYS-368J | ★ | ★ | ★ | ★ | ★ | ★ | ★ | ★ | |||||||
SYS-365 | ★ | ★ | ★ | ★ | ★ | ||||||||||
SYS-368 | ★ | ★ | ★ | ★ | ★ | ★ | |||||||||
SYS-468 | ★ | ★ | ★ | ★ | ★ | ★ | ★ | ||||||||
SYS-568 | ★ | ★ | ★ | ★ | ★ | ★ | ★ | ★ | |||||||
SYS-868 | ★ | ★ | ★ | ★ | ★★ | ★ | ★ | ||||||||
Specification
Parameters | ||||

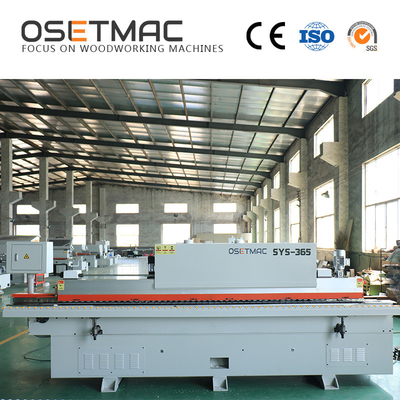

Model | SYS-365 | |||
Panel Thickness | 10-60mm | |||
Edge Band Thickness | 0.3-3mm | |||
Panel Width | ≥60mm | |||
Panel Length | ≥150mm | |||
Feeding Speed | 15-23m/min | |||
Working Pressure | 0.6Mpa | |||
Voltage | 380V/50HZ/3PH | |||
Gluing Motor | 0.75KW 50HZ 1400RPM | |||
End Cutting Motor | 0.37KW * 2 200HZ 12000RPM | |||
Trimming Motor | 0.75KW * 2 200HZ 12000RPM | |||
Buffing Motor | 0.37KW * 2 50HZ 1400RPM | |||
Conveyor Motor | 2.2KW | |||
Glue Pot Heating Power | 2.4KW | |||
Lighting Power | 0.05KW | |||
Lifting Motor | 0.25KW | |||
Total Power | 8.65KW | |||
Dimension | 4100x800x1620mm | |||
Wooden Crate Package | 4200×900×1720mm | |||
Packing & Delivery
Company Profile
OSETMAC focuses on woodworking machines for over 8 years. OSETMAC has wholly-owned manufacturing factories--Qingdao Three One Three Machinery Company. Our factories have been well-recognized as a professional woodworking machine producers. The main products of OSETMAC is sliding table saw, brush sanding machine, edge banding machine, wood drilling machine and CNC routers. What's more, our products have been sold to more than 30 countries and regions in Middle East, Southeast Asia, Europe and South America. OSETMAC is able to do our own R&D, deliver production task on time and provide customer service quickly. The manufacturing factories have already been granted ISO9001, and some of the main products have passed CE certificate.
Certifications
FAQ
1. who are we?
We are based in Shandong, China, start from 2018,sell to Southeast Asia(15.00%),Northern Europe(15.00%),North America(10.00%),Eastern Europe(10.00%),Western Europe(10.00%),Southern Europe(10.00%),South America(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Central America(5.00%),South Asia(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
SLIDING TABLE SAW,EDGE BANDING MACHINE,SANDING MACHINE,CNC ROUTER,WOODWORKING MACHINES
4. why should you buy from us not from other suppliers?
null
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
We are based in Shandong, China, start from 2018,sell to Southeast Asia(15.00%),Northern Europe(15.00%),North America(10.00%),Eastern Europe(10.00%),Western Europe(10.00%),Southern Europe(10.00%),South America(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Central America(5.00%),South Asia(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
SLIDING TABLE SAW,EDGE BANDING MACHINE,SANDING MACHINE,CNC ROUTER,WOODWORKING MACHINES
4. why should you buy from us not from other suppliers?
null
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
