Easy to Operate Wood Floor Sanding Machine for Plywood Board in Machinery Repair Shops
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Machine Type | Wood Sanding Machine |
|---|---|---|---|
| Video Outgoing-inspection | Provided | Machinery Test Report | Provided |
| Marketing Type | Ordinary Product | Warranty Of Core Components | 1 Year |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Warranty | 1 Year |
| Weight (KG) | 1100 KG | Power (kW) | 7.75 |
| Key Selling Points | Easy To Operate | Showroom Location | None |
| Applicable Industries | Manufacturing Plant, Building Material Shops, Machinery Repair Shops | Sander Type | Electric Wood Sanders |
| Port | Qingdao Port |
Product Description
Products Description

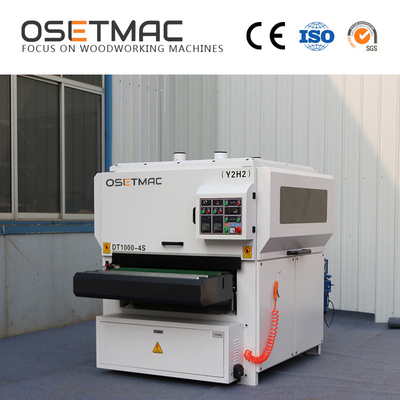

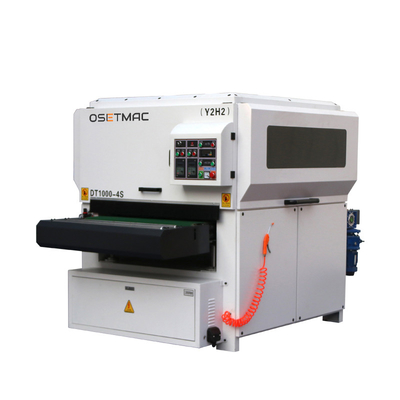

Best Selling Wood Floor Sanding Machine Round Wood Sanding Machine For Plywood Board
Description： This machine is suitable for the sanding or grinding of doors, cabinet, plywood, MDF and other panel furniture and solid wood furniture. It is widely applied to the board with primer, PE, PU, UV coating etc. 1. RIKEN sandpaper from Japan 2. Inner Structure：Y2H2 ( 2 units of disc brushes and 2 units of long brush rollers which can oscillate in different direction to make sure the perfect polishing effect.) 3. 9 disc brushes with quick-change connectors 4. The sandpaper grades are from #120-#600 5. The speed of rollers are adjustable so that the workers can adjust the speed according to different materials. 6. High precision and easy-to-use features makes your work more efficient. 7. This machine is time-saving, labor-saving, and manpower- saving. 8. Different Abrasive Materials for your choice 9.Support Customization Service
SPECIFICAITONS | ||
Max Working Width | 1000mm | |
Max Working Thickness | 10-150mm | |
Min Working Length | ≥350mm | |
Roller Speed | Inverter Control | |
Conveyor Speed | 5-20m/min | |
Long Roller Motor | 2.2KW×2 | |
Conveyor Motor | 0.75KW | |
Lifting Motor | 0.55KW | |
Disc Motor | 1.5KW | |
Swing Motor | 0.55KW | |
Total Power | 7.75KW | |
N. W. | 1110KG | |
Packing Dimension | 2400*1829*2150mm | |
Using Dimension | 2950*1750*2160mm | |
Rotatory Control Board
This brush sanding machine is very easy to control. Four units rollers' speed are controlled by two inverters and the speed of the rollers are easy to control by the switch on the control board. Workers can adjust the speed according to different materials.

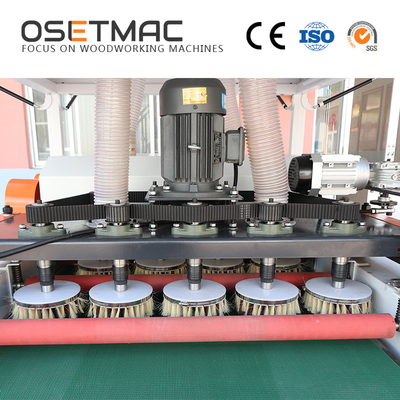

Disc Brushes
Two units of disc brushes (total 9 disc brushes) rotate in opposite directions, and the speed of the roller is adjustable by frequency control. With the board own movement and the disc brushes rotating, the machine can realize the sanding of uneven surface and corner from different angles.

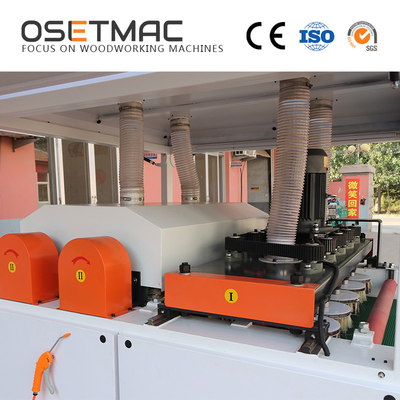

Length ways Rollers
Two units of long brush rollers are counter-rotating and can be lifted individually, which guarantee the sanding effect of all-round uneven surface and R-angle.
