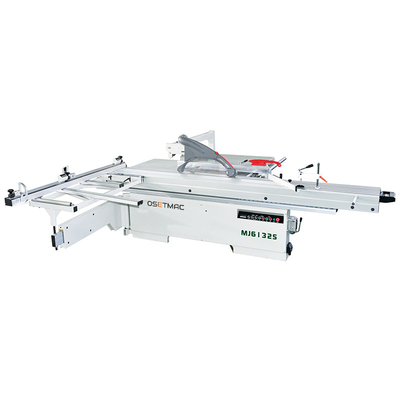

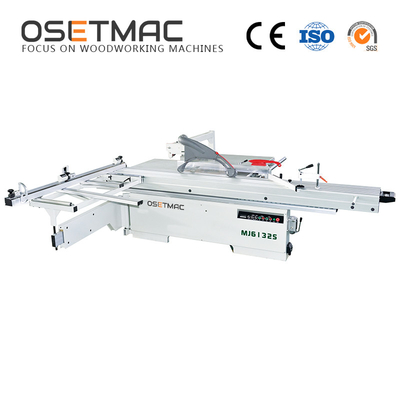

Sustainable MJ6132S Wood Plywood Saw Cutting Machine 45 or 90 degree Weight KG 1000 KG
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Type | Circular Saw |
|---|---|---|---|
| Use | Woodworking | Style | Horizontal |
| Warranty | 1 Year | Weight (KG) | 1000 KG |
| Key Selling Points | Sustainable | Applicable Industries | Hotels, Manufacturing Plant, Home Use, Construction Works |
| Marketing Type | New Product 2020 | Machinery Test Report | Not Available |
| Video Outgoing-inspection | Provided | Warranty Of Core Components | 1 Year |
| Core Components | Motor | Name | SLIDING TABLE SAW |
| Function | CUTTING WOOD | Service | 12 MONTHS |
| Motor Power | 380V50HZ3PH | After-sales Service Provided | Video Technical Support |
| After Warranty Service | Video Technical Support | Local Service Location | Saudi Arabia |
| Showroom Location | Turkey | Port | QINGDAO |
Product Description
Product Description
Specification
Sliding Table Dimension | 3200*390mm | ||||
Cast Iron Table Dimension | 910*620*80mm | ||||
length extension table | 905*680*70mm | ||||
width cutting extension table | 640*680*70mm | ||||
Main Saw Diameter | 300mm | ||||
Main Saw Blade Diameter Maximum | 350mm | ||||
Main Saw Bore Diameter | 30mm | ||||
Max. Cutting Height With Bade at 90 | 80/100mm（φ300/350） | ||||
Max. Cutting Height With Bade at 45 | 50/70mm（φ300/350） | ||||
Main Motor Power | 5.5KW | ||||
Main Blade Speed | 4000/6000RPM | ||||
Scorning Saw Blade Diameter | 120mm | ||||
Scorning Saw Bore Diameter | 20mm | ||||
Scorning Saw Motor Power | 1.1KW | ||||
Scorning Blade Speed | 8000RPM | ||||
Max. Cutting Width | 1250mm | ||||
Max. Cutting Length | 3100mm | ||||
Blade Tilting Adjustment | 0-45° | ||||
Main Saw Height Adjustment | Electric | ||||
Scorning Saw Height Adjustment | Electric | ||||
Dust Guard Outlet Diameter | 80mm | ||||
Dust System Outlet Diameter | 100mm | ||||
Dimension of Wood Packing Carton | 2250*1200*1100mm(Main Crate ) | ||||
3400*450*290mm(Sliding Table) | |||||
Dimension | 3250*3450*900mm | ||||
G. W. | 800KG | ||||
Packing & Loading
Details Images
Company Profile
OSETMAC focuses on woodworking machines for over 8 years. OSETMAC has two wholly-owned manufacturing factories--Qingdao Three One
Three Machinery Company and Qingdao De Tai Wo Machinery Company. Our factories have been well-recognized as a professional
woodworking machine producers. The main products of OSETMAC is sliding table saw, brush sanding machine, edge banding machine,
wood drilling machine and CNC routers. What's more, our products have been sold to more than 30 countries and regions in Middle
East, Southeast Asia, Europe and South America. OSETMAC is able to do our own R&D, deliver production task on time and provide
customer service quickly. The manufacturing factories have already been granted ISO9001, and some of the main products have passed
CE certificate.
Three Machinery Company and Qingdao De Tai Wo Machinery Company. Our factories have been well-recognized as a professional
woodworking machine producers. The main products of OSETMAC is sliding table saw, brush sanding machine, edge banding machine,
wood drilling machine and CNC routers. What's more, our products have been sold to more than 30 countries and regions in Middle
East, Southeast Asia, Europe and South America. OSETMAC is able to do our own R&D, deliver production task on time and provide
customer service quickly. The manufacturing factories have already been granted ISO9001, and some of the main products have passed
CE certificate.
