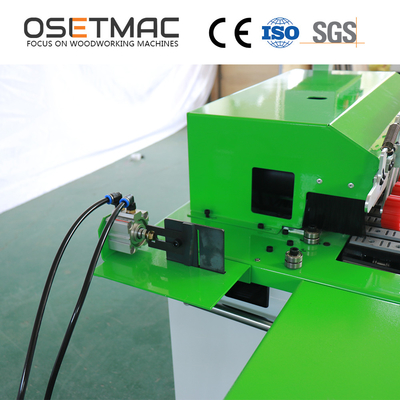

*90° manual end cutting function with good performance
*pvc , veneer , solid wood tape and so on
*Long time after sale service
*testing video before leave factory
*online technical support
All Products
-
JoroI have got the machines and the sliding table saw are really good quality.
Contact Person :
Kevin Han
Phone Number :
+86 18661895387
WhatsApp :
+8618661895387

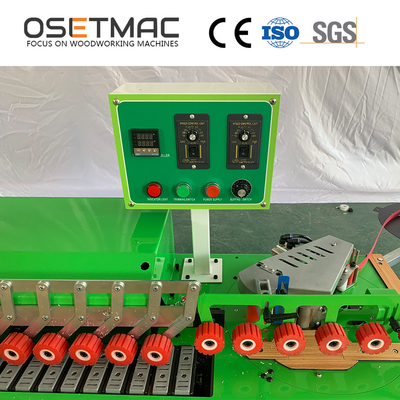

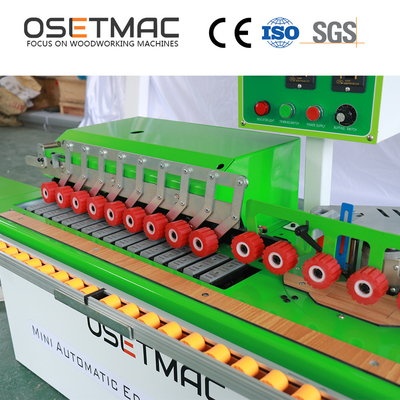

Manual Edge Banding Machine TS-505A with 7.4KW Power and 2.4KW Gluing Pot Heating Power
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Type | Edge Banding Machine |
|---|---|---|---|
| Voltage | 380v, 380v 50HZ 3 Ph | Dimension(L*W*H) | 4100x800x1560mm |
| Power (kW) | 7.4KW | Weight (KG) | 1200 Kg |
| Applicable Industries | Building Material Shops, Manufacturing Plant, Construction Works | Warranty | 1 Year |
| Function | Gluing | Key Selling Points | Long Service Life |
| Panel Feed Speed(m/min) | 25m/min | Video Outgoing-inspection | Provided |
| Warranty Of Core Components | 1 Year | Core Components | Motor |
| Panel Thickness | 10-60mm | Panel Width | ≥60mm |
| Panel Length | ≥150mm | Workign Pressure | 0.6Mpa |
| Edge Thickness | 0.3-3mm | HS Code | 8465100000 |
| Gluing Pot Heating Power | 2.4KW | Conveyor Motor | 2.2kw |
| After-sales Service Provided | Video Technical Support | After Warranty Service | Video Technical Support, Online Support |
| Local Service Location | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea | Showroom Location | Malaysia, None |
| Marketing Type | Ordinary Product | Machinery Test Report | Provided |
| Port | Qingdao Port |
Product Description
Product Description

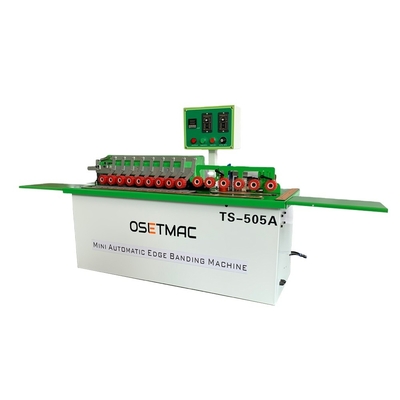

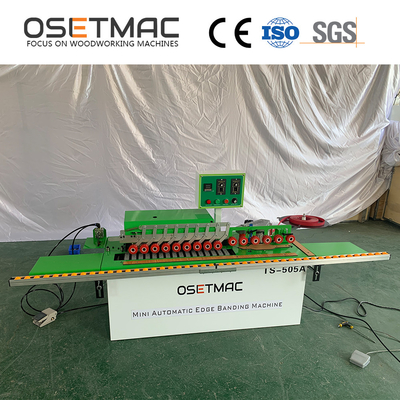

Portable manual edge banding machine
Main Technical Parameter
Parameters | ||||
Model | TS-505A | |||
Panel Thickness | 10-60mm | |||
Edge Band Thickness | 0.4-2mm | |||
Panel Width | ≥60mm | |||
Panel Length | ≥150mm | |||
Feeding Speed | 15-23m/min | |||
Working Pressure | 0.6Mpa | |||
Voltage | 380V/50HZ/3PH /220V50HZ1PH | |||
Gluing Motor | 0.75KW 50HZ 1400RPM | |||
End Cutting Motor | 0.37KW * 2 200HZ 12000RPM | |||
Trimming Motor | 0.75KW * 4 200HZ 12000RPM | |||
Corner Trimming Motor | 0.37KW * 2 200HZ 12000RPM 0.75KW * 2 200HZ 12000RPM | |||
Buffing Motor | 0.37KW * 2 50HZ 1400RPM | |||
Conveyor Motor | 2.2KW | |||
Glue Pot Heating Power | 2.4KW | |||
Lighting Power | 0.05KW | |||
Lifting Motor | 0.25KW | |||
Total Power | 12.4KW | |||
Our Advantages
Features of SYS-468
Description： *Good Work preformance
Packing&Shipping

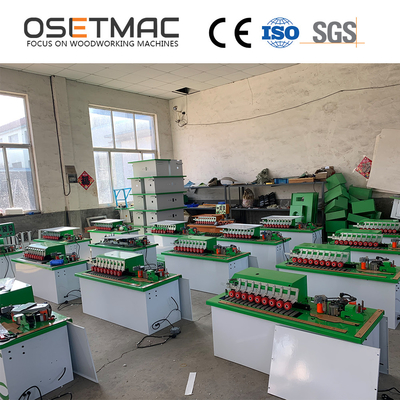

Company Introduction
