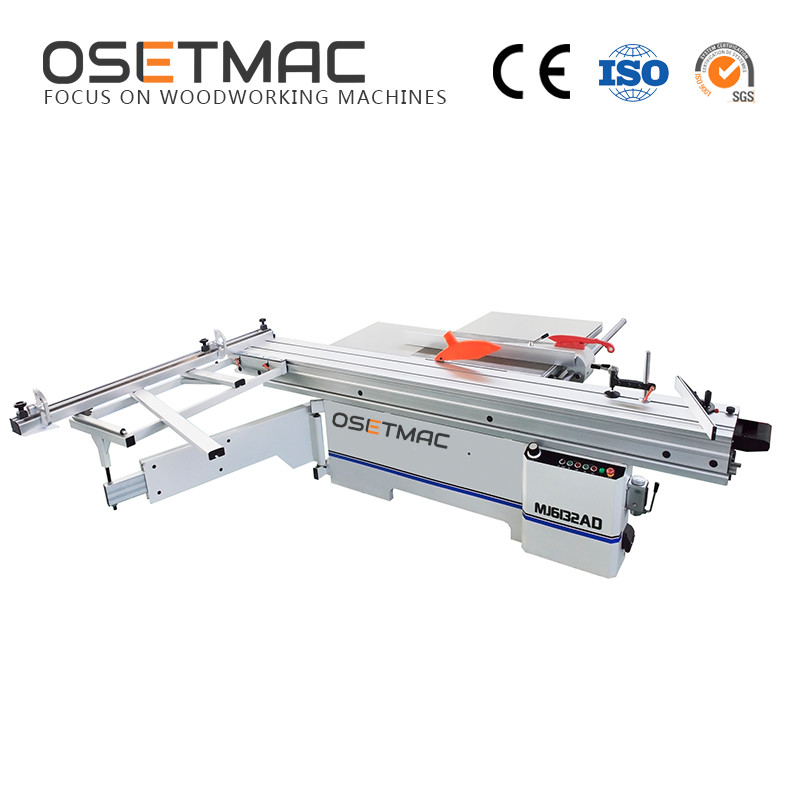

Industrial Woodworking Sliding Saw Machine For Wood Carpentry MJ6132AD

 Industrial High Precision Woodworking machine MJ6132AD Sliding Panel/table Saw for cutting wood

 Details Show

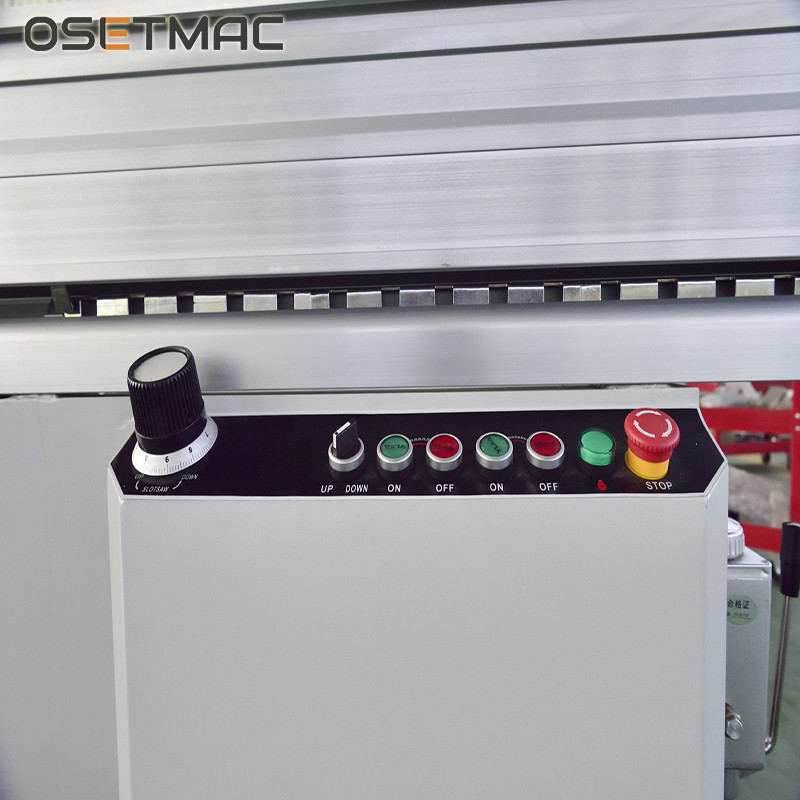

1.Electrical lifting of main saw blade, and the control board is easy to operate

2.Suitable for processing various MDF, particleboard, wood-based panel, ABS board, PVC board, plexiglass

plate and solid wood and other wood structure similar to the hardness of the plate.

3. Henghong electric motor with Aluminum shell with top qualtiy .

• This machine uses linear guideway to lift the saw blade which is more smooth and more

  durable. Aluminum shell motor makes sure its good heat dissipation. 25mm metal plate

  guarantees the compressive strength and the high precision of the inter-machine, which

  can also reduce the shock of the machine

•

• 4.HAORUN spindle of blade .

• After the heating processing and dynamic balancing treatment, our saw spindle will never deformation. With high quality belt and motor, our machine has lower noise, higher precision and higher efficiency of power transmission.

•

•

• 5.All bearings in this machine is SKF Bearings.

•

•

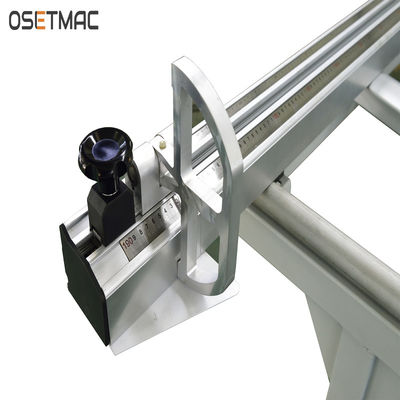

• 6.1.9m Large European guiding ruler

•

• 7. European dust collector can be connected with this machine.

•

•  Main Technical patameter

•

  Sliding Table Dimension	3200*380mm
  Cast Iron Table Dimension	910*620*80mm
  Length Extension Table	905*680*70mm
  Width Cutting Extension Table	640*680*70mm
  Main Saw Diameter	300mm
  Main Saw Blade Diameter Maximum	350mm
  Main Saw Bore Diameter	30mm
  Max. Cutting Height With Bade at 90	80/100mm(φ300/350)
  Max. Cutting Height With Bade at 45	50/70mm(φ300/350)
  Main Motor Power	5.5KW
  Main Blade Speed	4000/6000RPM
  Scorning Saw Blade Diameter	120mm
  Scorning Saw Bore Diameter	20mm
  Scorning Saw Motor Power	1.1KW
  Scorning Blade Speed	8000RPM
  Max. Cutting Width	1250mm
  Max. Cutting Length	3100mm
  Blade Tilting Adjustment	90°
  Main Saw Height Adjustment	Electric
  Scorning Saw Height Adjustment	Manual
  Dust Guard Outlet Diameter	80mm
  Dust System Outlet Diameter	100mm
  Wood Packing Dimensions Main Crate and Sliding table	2250*1150*1100mm 3400*450*290mm
  Installation Dimensions	3250*3450*900mm
  Gross Weight	790KG
