Woodworking Machine Sliding Table Saw MJ6132BD For Plywood And Panel Cutting
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Dimension(l*w*h) | 3400*1200*1200 | Type | Sliding Table Saw |
|---|---|---|---|
| Application | Panels Wood Cutting Machine | Tilting Saw Blade | 90°/0~45° |
| Gross Cut Capacity | 3000/3200/3800/4200mm | Product Name | Sliding Woodworking Table Panel Saw Wood Circular Saw Cutting Machine |
| Highlight | sliding table panel saw,sliding panel saw machine |
||
Product Description

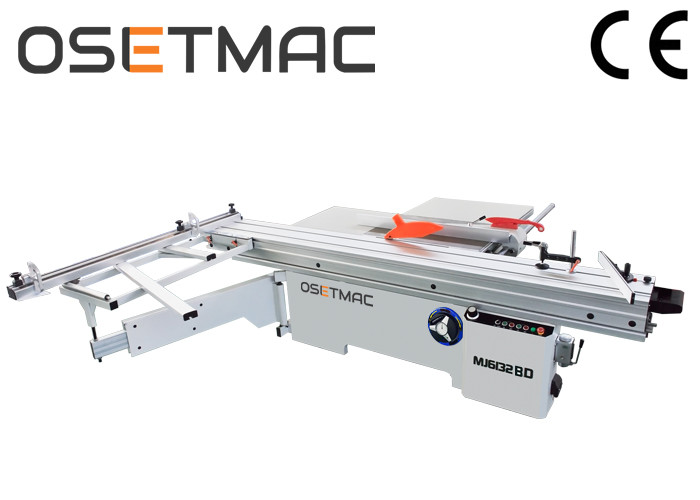

Woodworking Machine Sliding Panel Saw MJ6132BD for Plywood and Panel Cutting
http://www.youtube.com/watch?v=1JZ1bkaM0VM&t=82s
Detail Show
SKF Bearing
All bearings in this machine are all imported SKF brand, which has lower sliding resistance and power consumption comparing with ordinary bearings.

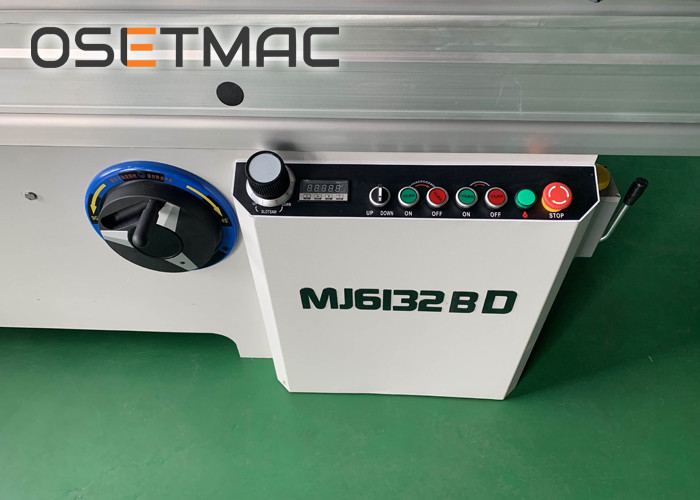

Controlling Board
The main saw blade lifting is electric control which makes it easy to operate. The rotation of hand wheel for saw blade tilting is very light and handy.
Rip Fence Fine Adjustment
Fine adjustment range is between 0-10mm, which makes the saw cutting size more precise. It is also very easily to adjust.
Orange Dust Hood and Riving Knife
The orange dust hood is fixed on the riving knife, which is very easy to adjust. It also has the functions of warning, protection and dust absorption.
Description:
- The lifting of the main saw is electrical control with linear guide lifting.
- The sliding table is made of high-strength extruded, anodized aluminum that will stay square and true and won’t bent.
- Digital readout can be used on the rip fence and crosscut fence if you like, which lets you make repeatable cuts without having to lose time measuring lengths.
- The scoring blade spins at 8,000 rpm to ensure a crisp, clean cut without frayed or ripped edges.
- Huge 3200*375mm sliding table slides on 4 precision shafts for jitter-free motion.
- Covered by a 1-year parts warranty.
Specifications:
| Sliding Table Dimension | 3200*375mm |
| Cast Iron Table Dimension | 980*560*70mm |
| Length Extension Table | 760*630*50mm |
| Width Cutting Extension Table | 575*550*50mm |
| Main Saw Diameter | 300mm |
| Main Saw Blade Diameter Maximum | 300mm |
| Main Saw Bore Diameter | 30mm |
| Max. Cutting Height With Bade at 90 | 80/100mm(φ300/350) |
| Max. Cutting Height With Bade at 45 | 55mm50/70mm(φ300/350) |
| Main Motor Power | 4KW(5.5KW) |
| Main Blade Speed | 4000/6000RPM |
| Scoring Saw Blade Diameter | 120mm |
| Scoring Saw Bore Diameter | 20mm |
| Scoring Saw Motor Power | 0.75KW(1.1KW) |
| Scoring Blade Speed | 8000RPM |
| Max. Cutting Width | 1250mm |
| Max. Cutting Length | 3200mm |
| Blade Tilting Adjustment | 0-45° |
| Main Saw Height Adjustment | Manual |
| Scoring Saw Height Adjustment | Manual |
|

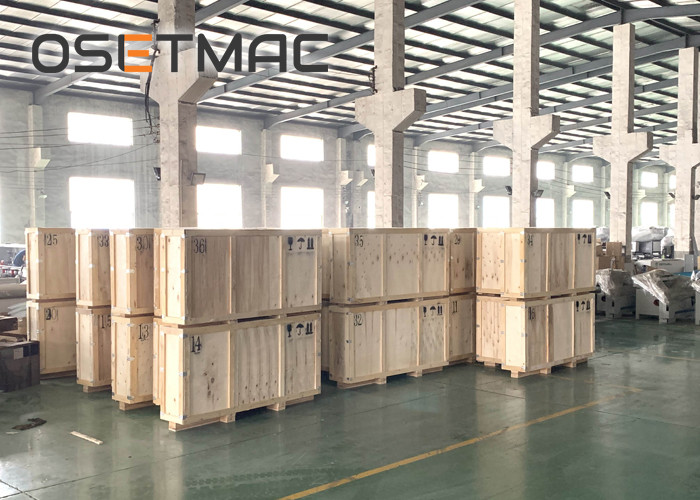

Wood Packing Dimensions Main Crate and Sliding table |
2100*1100*1100mm 3400*420*220mm |
| Installation Dimensions | 3250*3150*900mm |
| Net Weight | 680KG |
Competitive Advantage:
- We can change the outlook of the machine according to your requirement.
- Any size of the sliding table can be produced and the longest customized size is 4.2 m.
- We have two wholly-owned manufacturing factories and can make sure of the delivery time.
