Industrial Woodworking Sliding Panel Saw Table Saw MJ6132AD2800*1100*1200mm
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Dimension(l*w*h) | 3200*1100*1200mm | Application | Wood Cutting Saw,Furniture |
|---|---|---|---|
| Tilting Saw Blade | 90°/0~45° | Gross Cut Capacity | 3200mm |
| Product Name | Woodworking Sliding Table Panel Saw | Name | MJ6132AD Sliding Table Panel Saw Machine For Wood Working |
| Highlight | sliding panel saw machine,sliding table circular saw machine |
||
Product Description

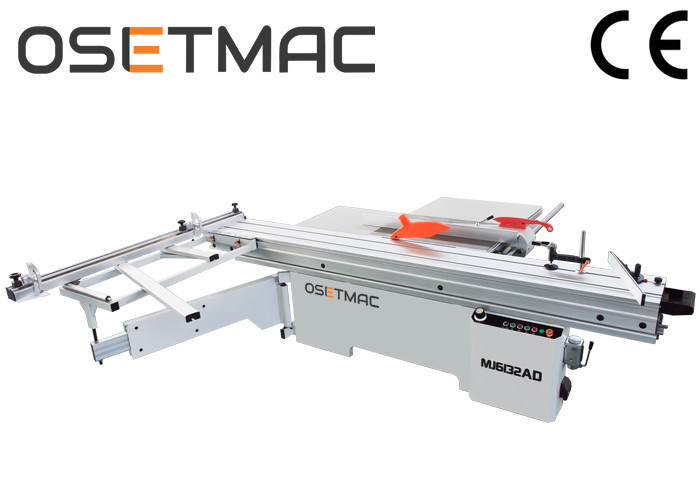

Woodworking Machine Sliding Panel Saw MJ6132AD for Plywood and Panel Cutting Made in China
Description:

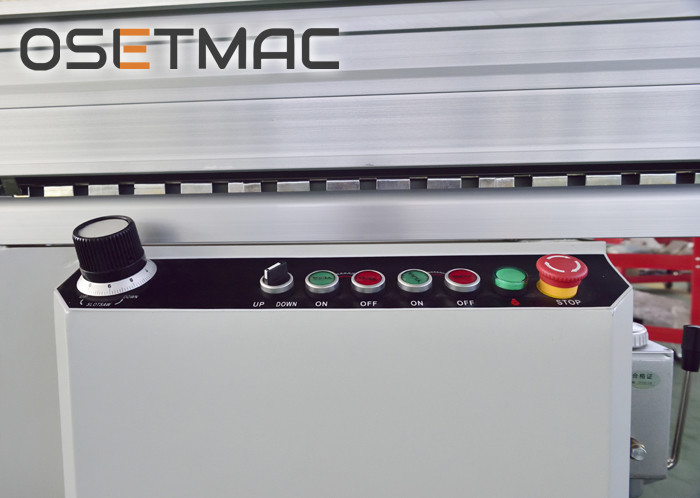

1.Electrical lifting of main saw blade, and the control board is easy to operate.
2.Suitable for processing various MDF, particleboard, wood-based panel, ABS board, PVC board, plexiglass
plate and solid wood and other wood structure similar to the hardness of the plate.
3. Henghong electric motor with Aluminum shell
4.Haorun saw spindle
5. All bearings in this machine is SKF Bearings.

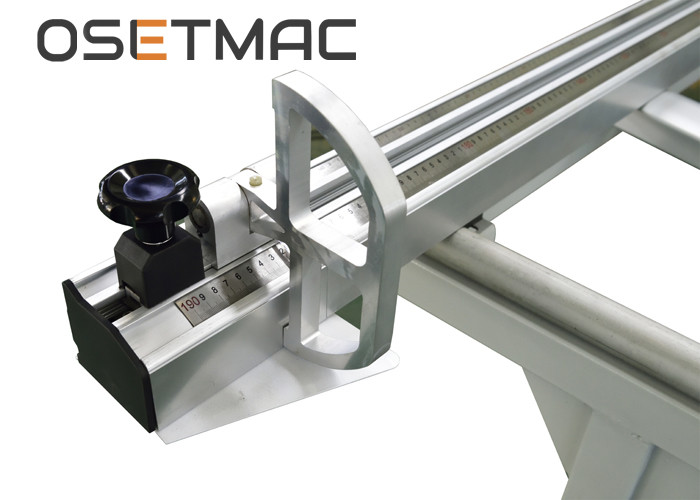

6.1.9m European guiding ruler
7.Big dust cover can be connected with this machine.
Specifications:
| Sliding Table Dimension | 3200*380mm |
| Cast Iron Table Dimension | 910*620*80mm |
| Length Extension Table | 905*680*70mm |
| Width Cutting Extension Table | 640*680*70mm |
| Main Saw Diameter | 300mm |
| Main Saw Blade Diameter Maximum | 350mm |
| Main Saw Bore Diameter | 30mm |
| Max. Cutting Height With Bade at 90 | 80/100mm(φ300/350) |
| Max. Cutting Height With Bade at 45 | 50/70mm(φ300/350) |
| Main Motor Power | 5.5KW |
| Main Blade Speed | 4000/6000RPM |
| Scorning Saw Blade Diameter | 120mm |
| Scorning Saw Bore Diameter | 20mm |
| Scorning Saw Motor Power | 1.1KW |
| Scorning Blade Speed | 8000RPM |
| Max. Cutting Width | 1250mm |
| Max. Cutting Length | 3100mm |
| Blade Tilting Adjustment | 90° |
| Main Saw Height Adjustment | Electric |
| Scorning Saw Height Adjustment | Manual |
| Dust Guard Outlet Diameter | 80mm |
| Dust System Outlet Diameter | 100mm |
|
Wood Packing Dimensions Main Crate and Sliding table |
2250*1150*1100mm 3400*450*290mm |
| Installation Dimensions | 3250*3450*900mm |
| Gross Weight | 790KG |
Competitive Advantage:
- We can change the outlook of the machine according to your requirement.
- Any size of the sliding table can be produced and the longest customized size is 4.2 m.

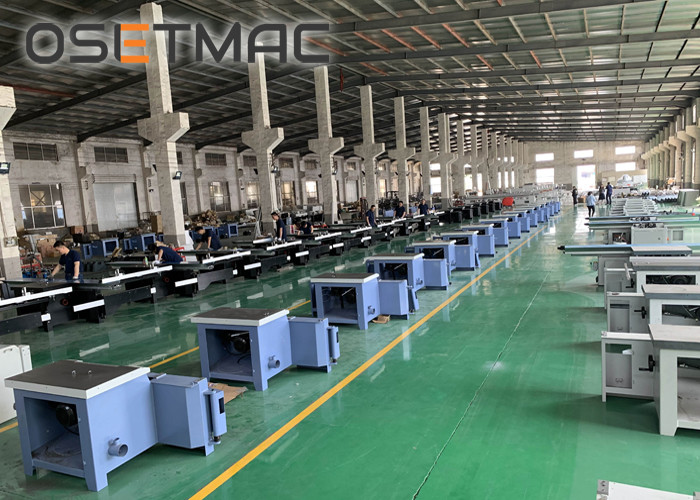

- We have two wholly-owned manufacturing factories and can make sure of the delivery time.
